HDG Hex Washer Head Self Drilling Screw

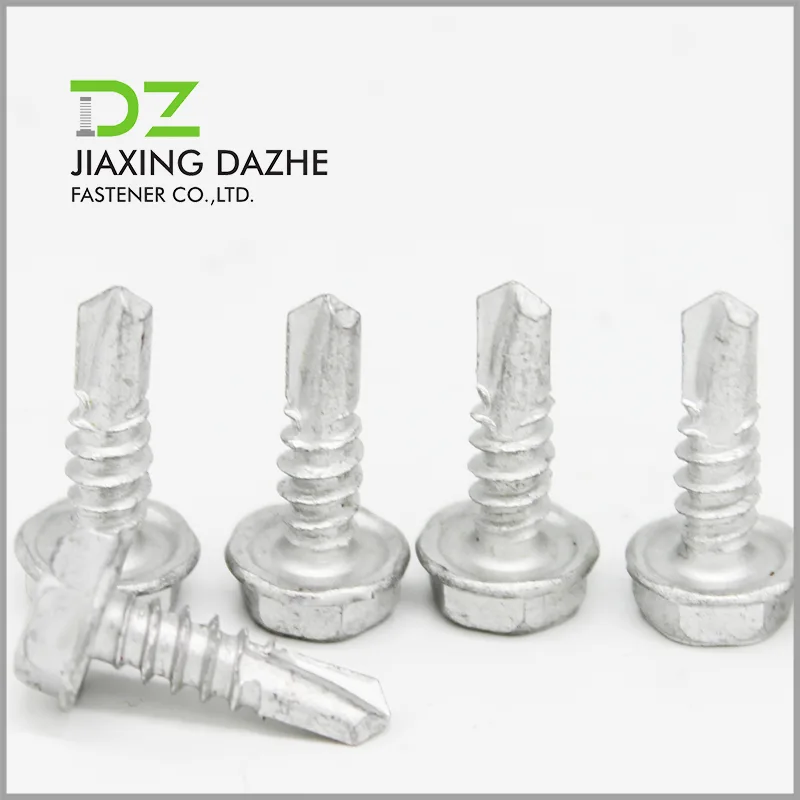

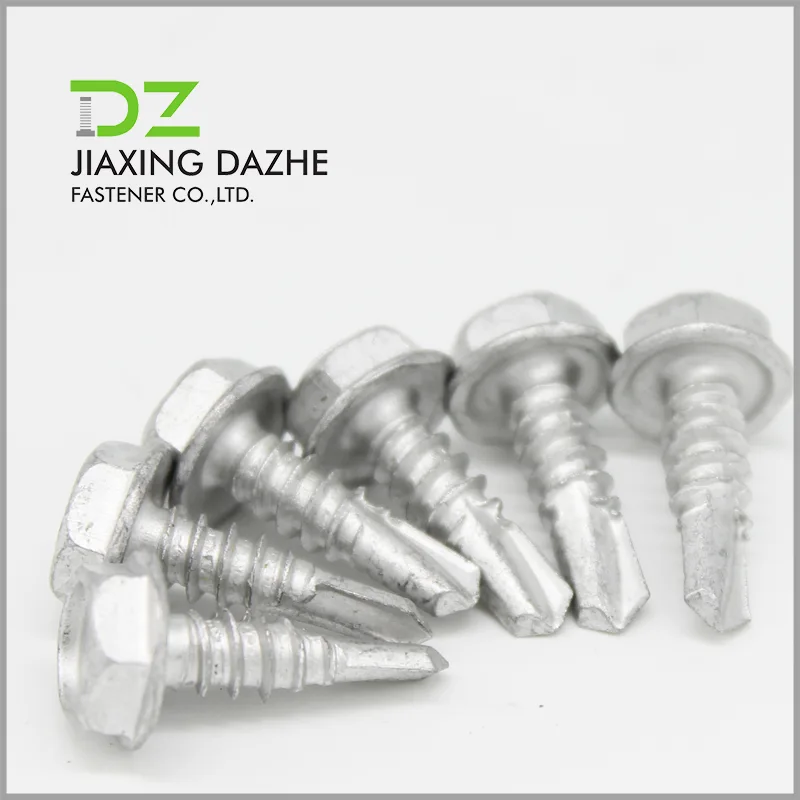

Dazhe’s China HDG Hex Washer Head Self Drilling Screw is a high-efficiency fastening connector integrated with a drill bit, a hexagonal head, and a built-in washer.

Structural Features

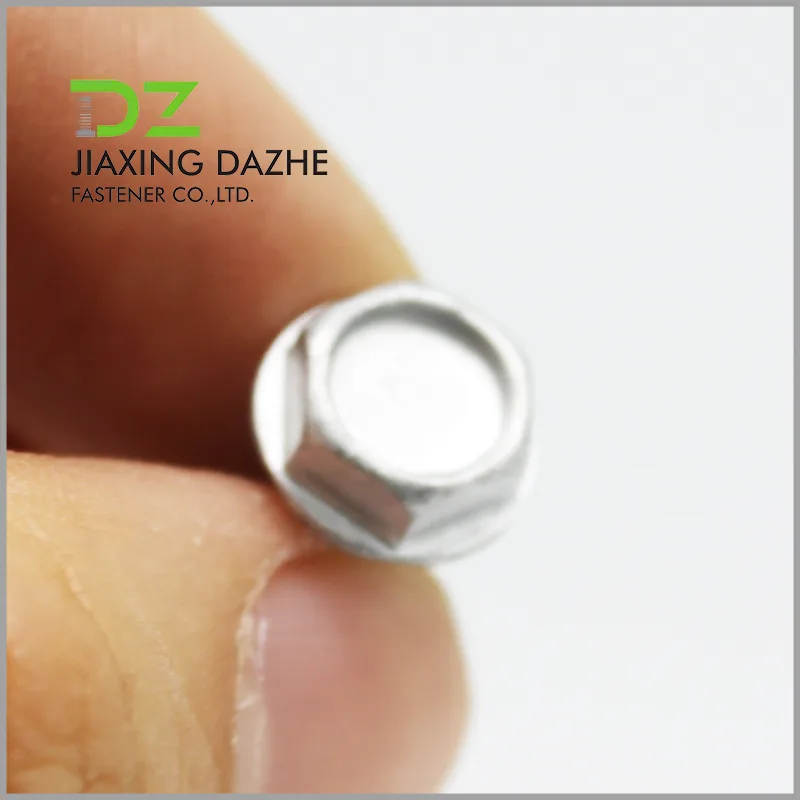

1.The hexagonal head allows tightening with a wrench or socket, delivering sufficient torque for secure fastening.

2.The washer, located beneath the head, expands the force-bearing area, disperses pressure, prevents damage to the surface of connected materials, and provides moderate anti-loosening performance.

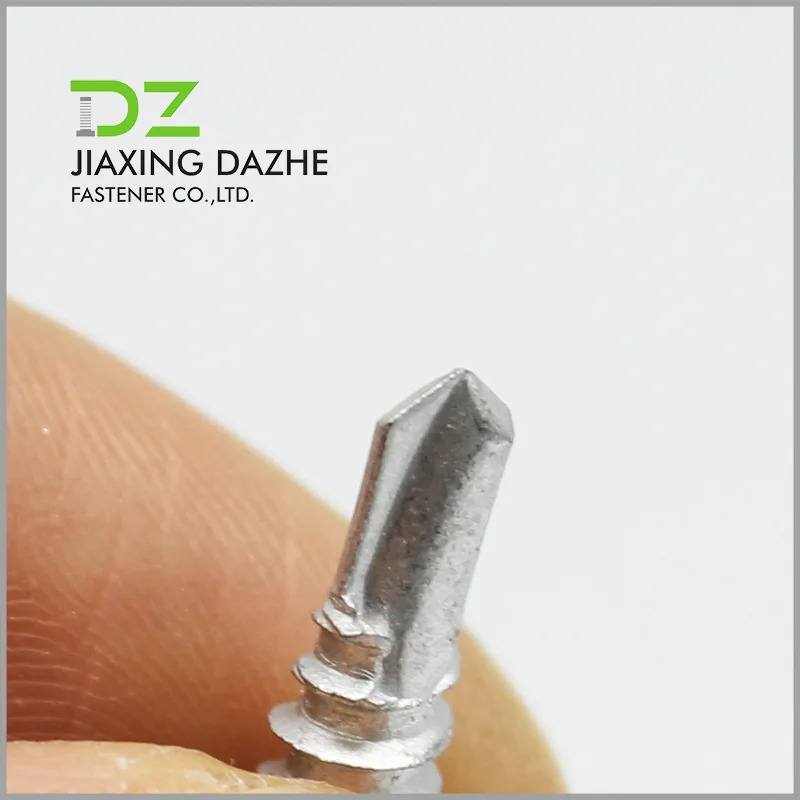

3.The self-drilling tail (usually pointed or flat) enables direct drilling and tapping on materials without pre-drilling holes.

Specifications & Parameters

1.Common thread sizes: ST4.2, ST4.8, ST5.5, ST6.3mm, etc.

2.Nominal lengths: 25mm, 55mm, 75mm, 100mm, 120mm, etc.

Materials & Surface Treatment

Two main material options are available: carbon steel and stainless steel.

1.Carbon steel screws

1).Made of 1022A steel as standard.

2).Features high surface hardness after heat treatment and low cost, but is prone to rust with ordinary surface treatment.

2.Stainless steel screws

1).Common grades: 410 and 304 stainless steel.

2).410 grade supports heat treatment and offers better corrosion resistance than carbon steel.

3).304 grade provides excellent rust resistance, but has lower hardness and higher cost.

Application Scenarios

Widely used across multiple industries:

1.Construction & steel structure: Fixing steel roof/wall purlins to the main structure of workshops and warehouses; installing color steel plates onto steel keels.

2.Home appliance & equipment manufacturing: Assembling appliance casings to frames; mounting protective covers for industrial equipment.

3.Automotive & transportation facilities: Securing auto body parts and traffic signs.

4.Also applicable to photovoltaic & new energy, decoration & furniture, and agricultural & livestock breeding facilities.

Installation Tools

Typically installed with a pistol drill equipped with a dedicated socket. A pistol drill with a torque limiter can prevent thread slipping.
