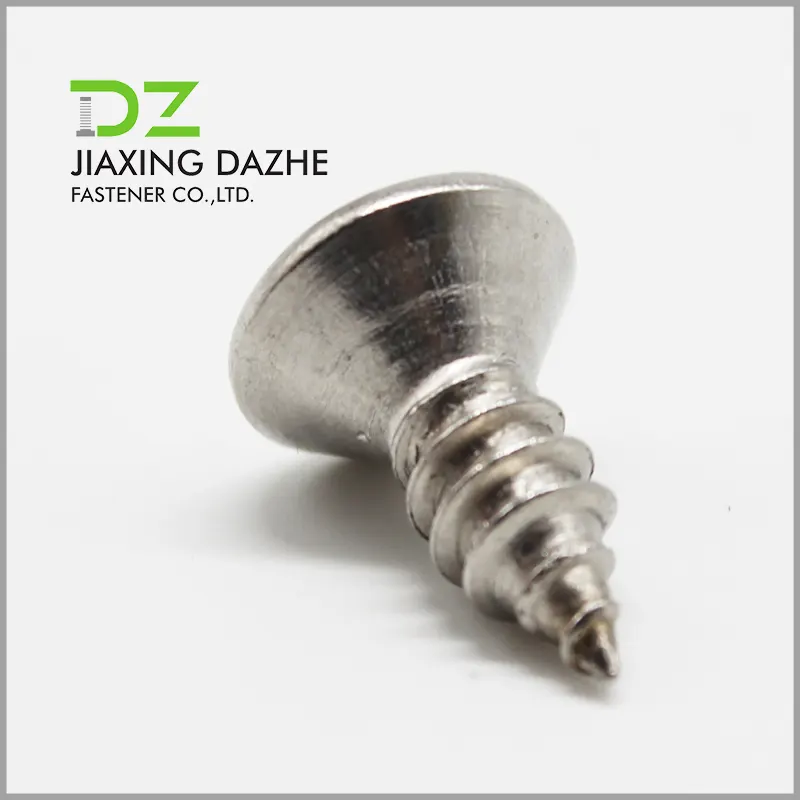

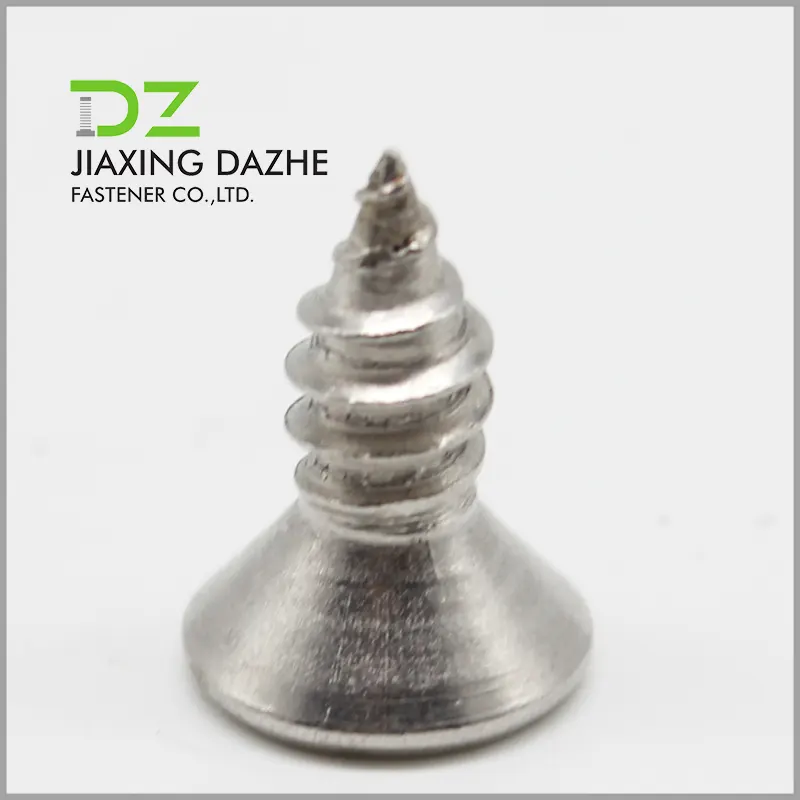

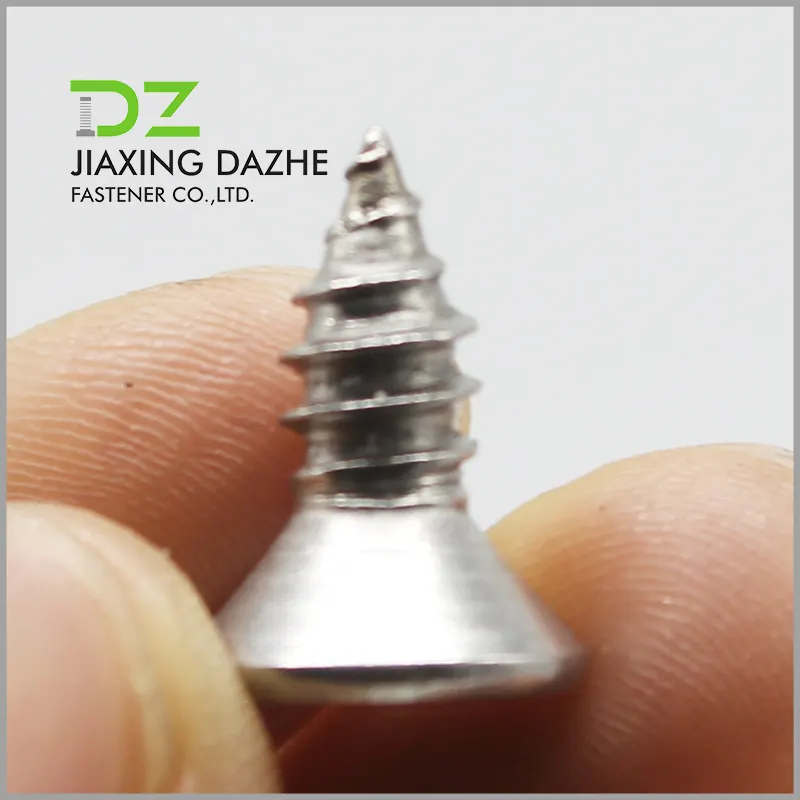

Countersunk Torx Self Tapping Screw

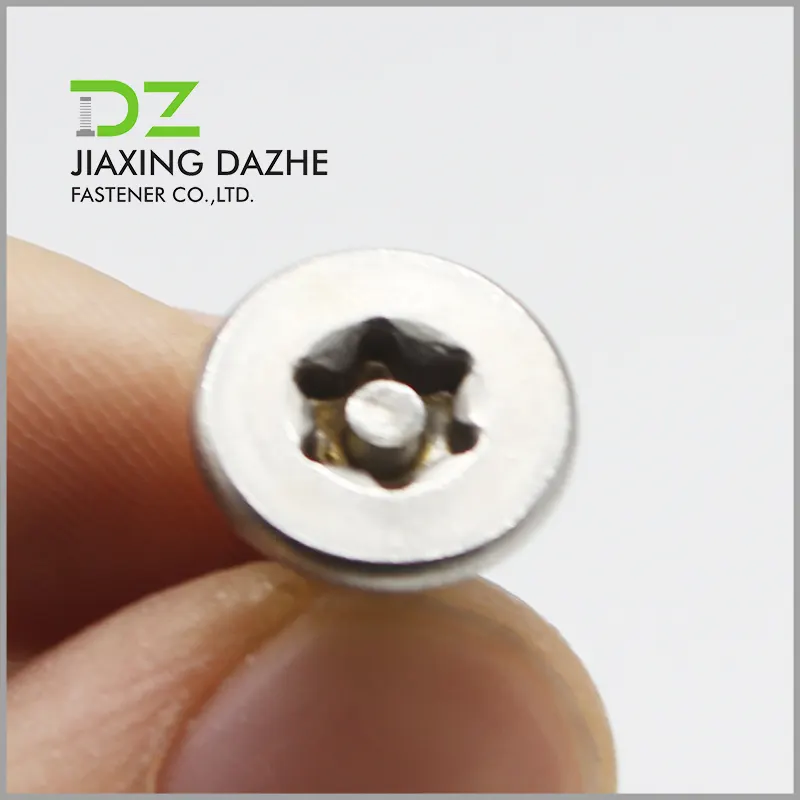

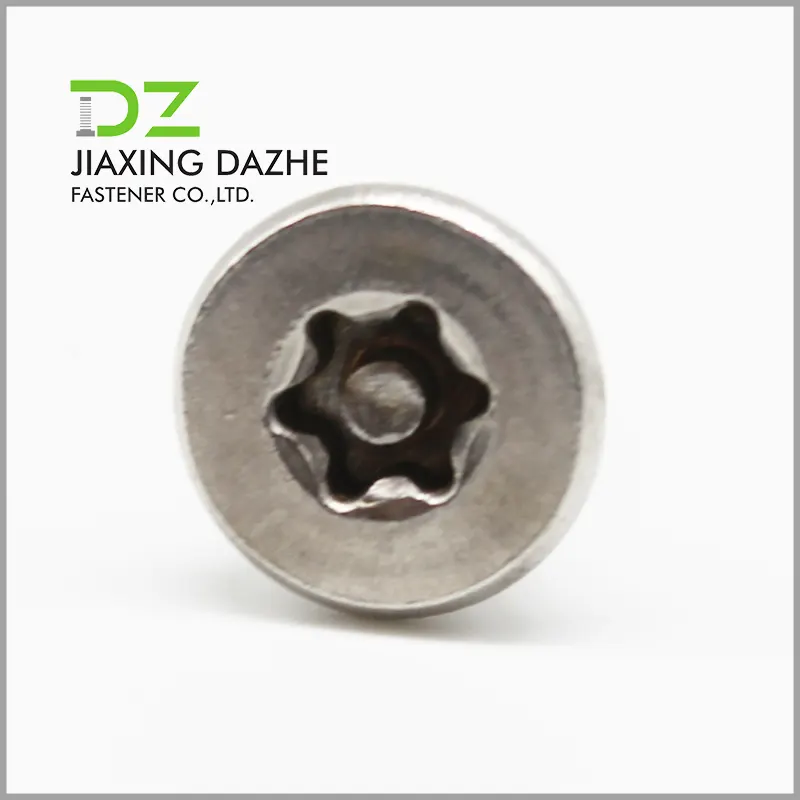

The drive recess of the countersunk Torx self tapping screw adopts a standard Torx star-shaped groove structure. The groove is integrally formed during cold forging, with uniform wall thickness, smooth inner surface and accurate angular dimension. The central positioning boss is designed to prevent tool slippage, and the groove depth is reasonably controlled to ensure sufficient meshing length between the screwdriver bit and the screw, while avoiding excessive depth that may weaken the head strength. The transition between the groove and the screw head is polished smoothly to eliminate sharp burrs and stress concentration points.

Quality Control Key Points

1.Dimensional inspection: Strictly check the groove depth, groove width, included angle and concentricity of the Torx recess to comply with relevant industrial standards.

2.Surface quality: No burrs, cracks, deformation or damage are allowed inside the drive recess. The surface finish must meet requirements.

3.Hardness testing: Ensure the hardness of the screw head and drive recess reaches the specified standard to prevent groove wear, collapse or sliding during assembly.

4.Assembly performance test: Conduct torque test repeatedly to verify the matching stability between the recess and the tool, and assess the anti-slip and anti-abrasion performance.

5.Appearance inspection: The countersink and the transition area of the drive recess shall be free from defects such as distortion and oxidation discoloration.

Matching Tools of Countersunk Torx Self Tapping Screw

Special Torx screwdriver bits and Torx hand screwdrivers are the main matching tools. According to different Torx specifications, select corresponding standard star bits. For industrial batch assembly, electric screwdrivers, pneumatic screwdrivers and impact drivers equipped with Torx bits are widely used. In addition, Torx socket wrenches are applied for installation in narrow spaces. All tools must match the screw’s Torx model to guarantee complete engagement and stable transmission of torque.

Advantages of Torx Recess

1.Excellent anti-slip performance: The multi-angle star structure provides larger contact area, effectively preventing the tool from slipping out during tightening or loosening.

2.High torque bearing capacity: Uniform force distribution on each tooth avoids local stress concentration, so it can withstand higher torque without groove damage.

3.Good wear resistance: The reasonable tooth profile design reduces friction and abrasion between the tool and the screw recess, extending the service life of both screws and tools.

4.Stable assembly: Centering design ensures accurate positioning of the tool, improves assembly efficiency, and is suitable for high-speed automated production lines.

5.Strong versatility and anti-theft property: Special Torx specifications can play a certain anti-disassembly effect for products requiring anti-theft design.

Application Scope of our Countersunk Torx Self Tapping Screw

Countersunk Torx self tapping screws are widely used in electronics, electrical appliances, furniture manufacturing, automotive interior parts, communication equipment, building decoration and metal sheet assembly. They are ideal for connection scenarios that require neat surface, firm fastening, high assembly efficiency and anti-loosening performance. They are especially applicable to thin metal plates, plastic parts, wood products and composite materials, and are favored for precision assembly of civil and industrial products.
